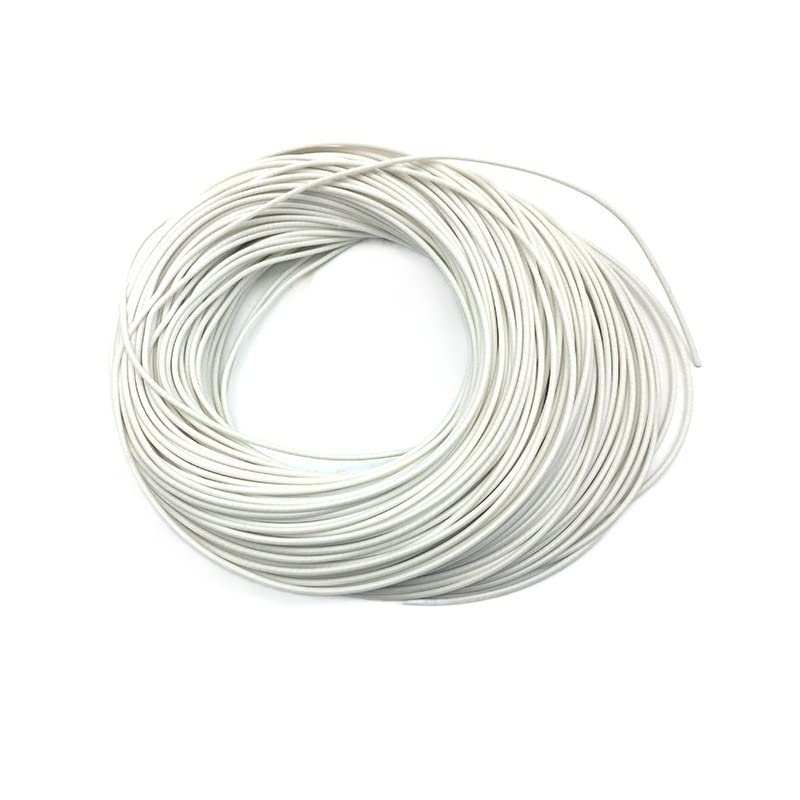

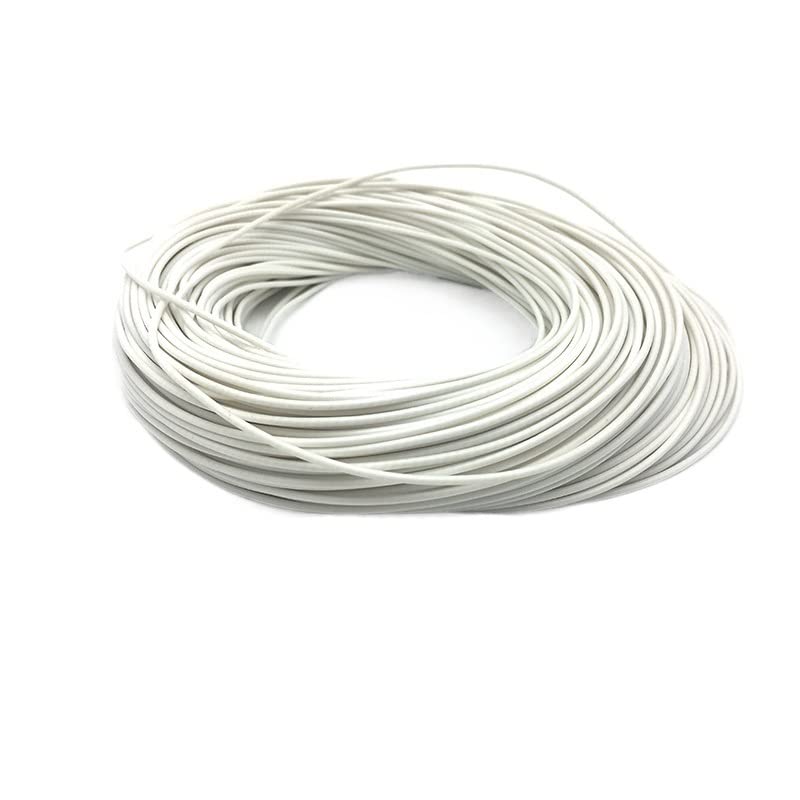

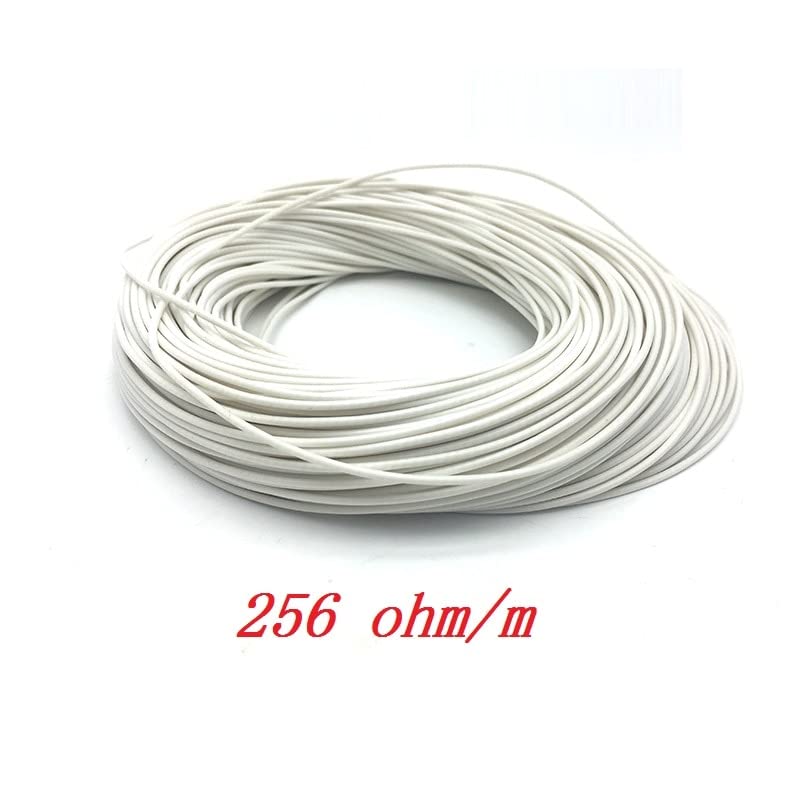

50M Low Voltage Silicone Rubber Heating Cable - Electric Heating Wire for Heating Pads, Mats, and More(100mx256Ohm)

Description: silicone rubber hotlineHeating Material: Nickel-chromium alloy or a copper-nickel alloyPower frequency withstand voltage: 2000 VInsulation resistance: 100MMax enduring temperature: 200CWithstand voltage: 300 VDiameter range: 2 mmProduct life: more than 30000 hoursResistance: 0.6; 2; 5; 10; 15; 20; 25; 33; 50; 74; 256; 350 Ohms/mPower caculation: P=(U*U)/(L*R)U is voltage L is the length of heating wire R is resistance per meter.For example: If we use 5 meters 0.6 Ohm/m heating wire on 12V the power consumption = (12*12)/(5*0.6)=48 watts.Question: What is the power of the cable? And what is heating temperature?Answer: 1. The power of the cable is based on the length that you use you can calculate the power according to above examples.2. Power = 5W/m the temperature is about 30~40C degrees;Power = 10W/m the temperature is about 40~50C degrees;Power = 15W/m the temperature is about 50~60C degrees;Power = 20W/m the temperature is about 60~70C degrees;Please notice that this is for your reference not exactly right because of different test conditions.Notice:1. Do not use more than 20W/m or it may burn down the heating wire.2. Do not overlap.3. The temperature will be low if use the 5V power because the current of 5v is not enough.

• silicone rubber heating cable devised for versatile heating applications, including electric blankets, cushions, and pet mats.

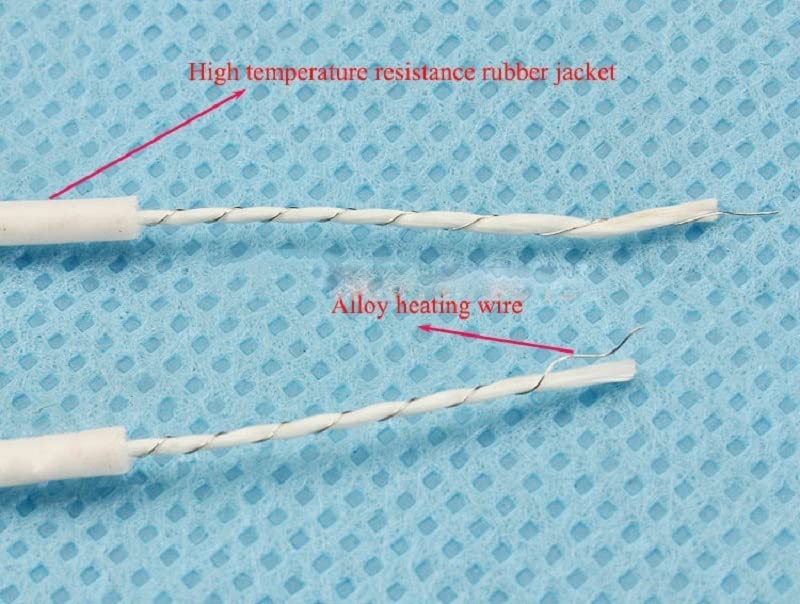

• Constructed with durable nickel-chromium or copper-nickel alloy, ensuring long-lasting performance with a lifespan of over 30,000 hours.
• Safe and efficient with a maximum enduring temperature of 200°C and a power frequency withstand voltage of 2000V, suitable for various heating needs.
• Flexible diameter of 2mm allows for easy installation in heating pads, mats, and other devices, providing excellent insulation resistance of 100M.
• Ideal for defrosting freezers, insulating rice cookers, heating towel rails, and more, making it a perfect choice for both home and Healthcare applications applications.
